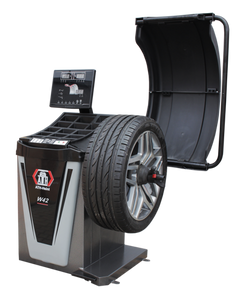

ATH-Heinl W42 LED 2D avbalanseringsmaskin

19.800,-

Dekk avbalanseringsmaskin for personbiler med automatisk måling av avstand og felgdiameter samnt manuell inntasting av felgbredde (2D funksjon)

Beskrivelse

  • Highest quality: Warp-resistant construction with high precise laser cut manufacturing and robotic welding
  • Semi-automatic measuring: Automatic measuring of the distance and the rim diameter, manual input of the rim width (2D function)
  • Easy handling: Ergonomically arranged front panel, big counterweights holder
  • Clear displayed measurements: Weights location indicator by LED and Laser (LPS)
  • Precise balancing: Exact work controlled by microprocessor
  • Great program choice: Static/dynamic, aluminum programs, aluminum weight optimizing and split-program
  • Comfortable working: Balancing shaft and quick nut with a diameter of 40 mm, easy attaching of the counterweights due to pedal controlled wheel brake and the ruler, inner wheel target light
  • Modern design: High resistant powder coating with attractive hammer scale painting design
  • Maximum security: Wheel protecting with automatic start-stop function
  • Scope of delivery: Centering cones between 45 and 130 mm diameters, gauge for measuring rim width, quick nut, calibration weight (100g), weight pliers, clamping cap for aluminum rims, shaft spring
  • Perfect wheel balancer for passenger cars, with optional accessories also for motorcycle and light-truck wheels
  • Optional expandable to ATH W42 LED 3D

Tekniske data:

Motor power 0,25 kW
Measuring speed 180 rpm
Rim diameter max. 12 - 24 "
Weight 113 kg
Machine dimensions (W x D x H) 850 x 750 x 1160 mm
Mittenlochdurchmesser Felge min. 45 mm
Wheel weight max. 65 kg
Measuring time 7 s
Power supply 230/50 V / Hz
Tolerance of measure +/- 1,0 g
Rim width max. 1,5 - 20 "
max. diameter of centre bore diameter 130 mm
Wheel diameter max. 900 mm
Display (LED, LCD, TFT) LED
Power supply voltage (electrical) 230 V AC / 50 Hz
